STK-100D - Digital Ignition/Lighting Alternator Kit

BSA: B25, B40, B44, B50, C15
Matchless 350
Royal Enfield:
350 Bullet - STK100D
STK-100D - Digital Ignition/Lighting Alternator Kit

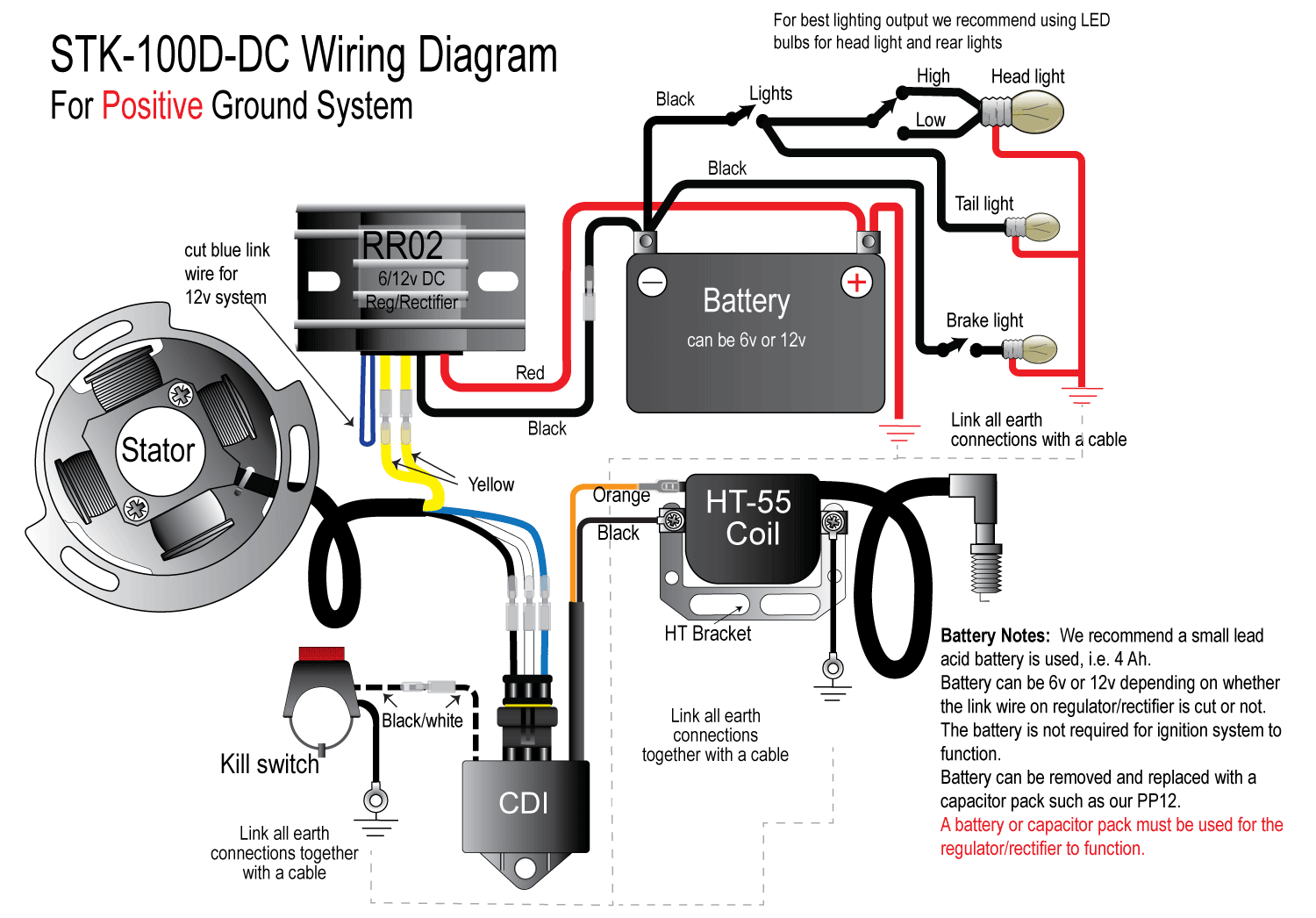

ATK-100D - Ignition Alternator Kit for BSA B25 B40 B44 C15, Matchless 350STK-100D - Timing marksSTK-100D - Stator on engineSTK-100D - Wiring diagram
Remove excess materialRemove excess materialRemove excess material

STK-100D - Digital Ignition/Lighting Alternator Kit

Many of these items are made to order.
We will advise you on any delay.


Price:  225.00 / 252.00
(270.00 / 302.40 Including VAT at 20%)

Quantity:







       Fitting InstructionsDelivery & OverseasWarranty & Returns

Ignition Kit fits:

BSA:
B25, B40, B44, C15                     Matchless:350                     Royal Enfield: 350

PLEASE NOTE: for BSA B40, B44 and B50 - models with a seperate inspection cover in the clutch cover. the x4 threaded bosses potrude inwards and may touch the end of the new rotor supplied. The remedy is to remove a small about of material using a 'power file', or similar grinder from the inside of the threaded boss - typically 2mm. - see images above.

NOTE - Only suitable for Matchless models with a tin clutch cover where the original stator is mounted directly on to the crankshaft.
  • Replacement for original alternator and ignition. Complete digital self generating ignition and alternator, pre-programmed advance curve gives optimum performance for the 4 stroke twin engine.
  • No battery, contact breaker assembly or distributor required for the ignition.
  • Simple timing set-up align marks on the rotor and stator.
  • Single phase alternator 65w output with combined regulator and regulator/rectifier. This gives a controlled 12v AC output to the lighting circuit to prevent bulb failure + 12v DC output to a battery if fitted. The battery can be replaced with a capacitor pack if required, this gives greater reliability but has limited energy storage capability.
  • NOTE: A battery is NOT required to run the ignition or lighting but advantageous for brakelight or indicators.
  • Most of our parts are manufactured by ourselves in the UK.
