Online Catalogue | Stator Kits |  STK-177 - Digital Ignition and Alternator System

STK-177 - Digital Ignition and Alternator System

BSA Bantam: D10, D14, B175
STK-177 - Digital Ignition and Alternator System

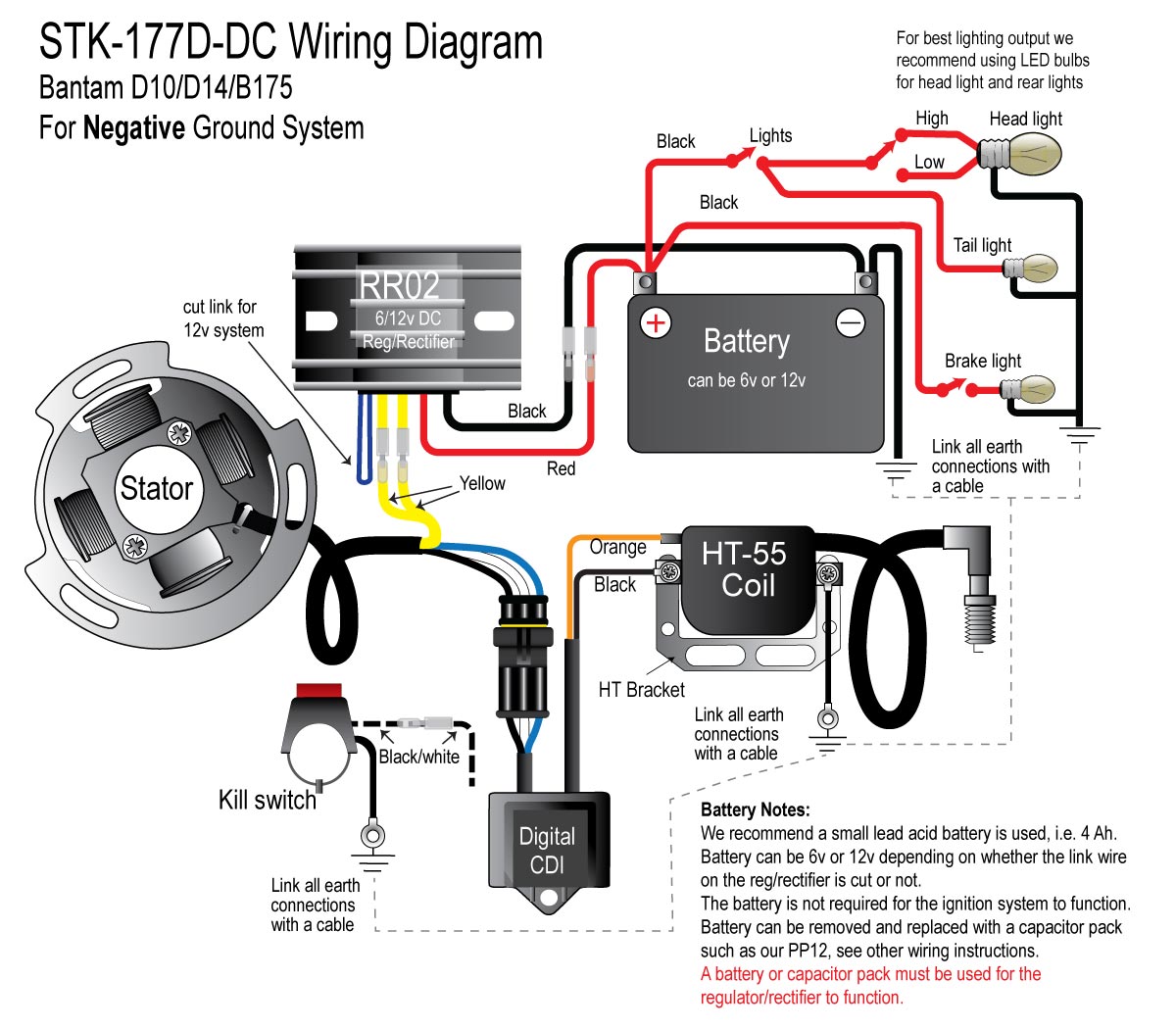

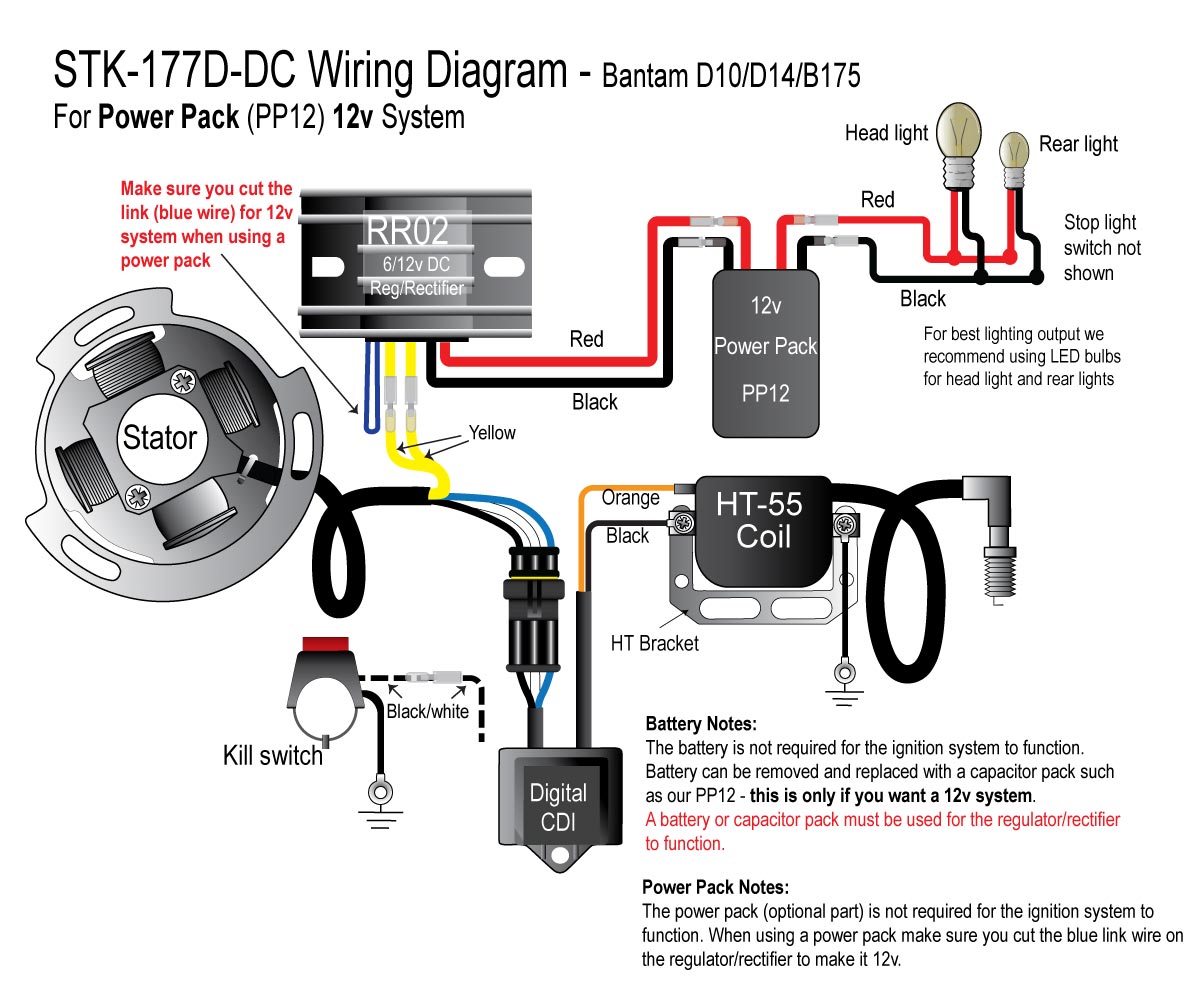

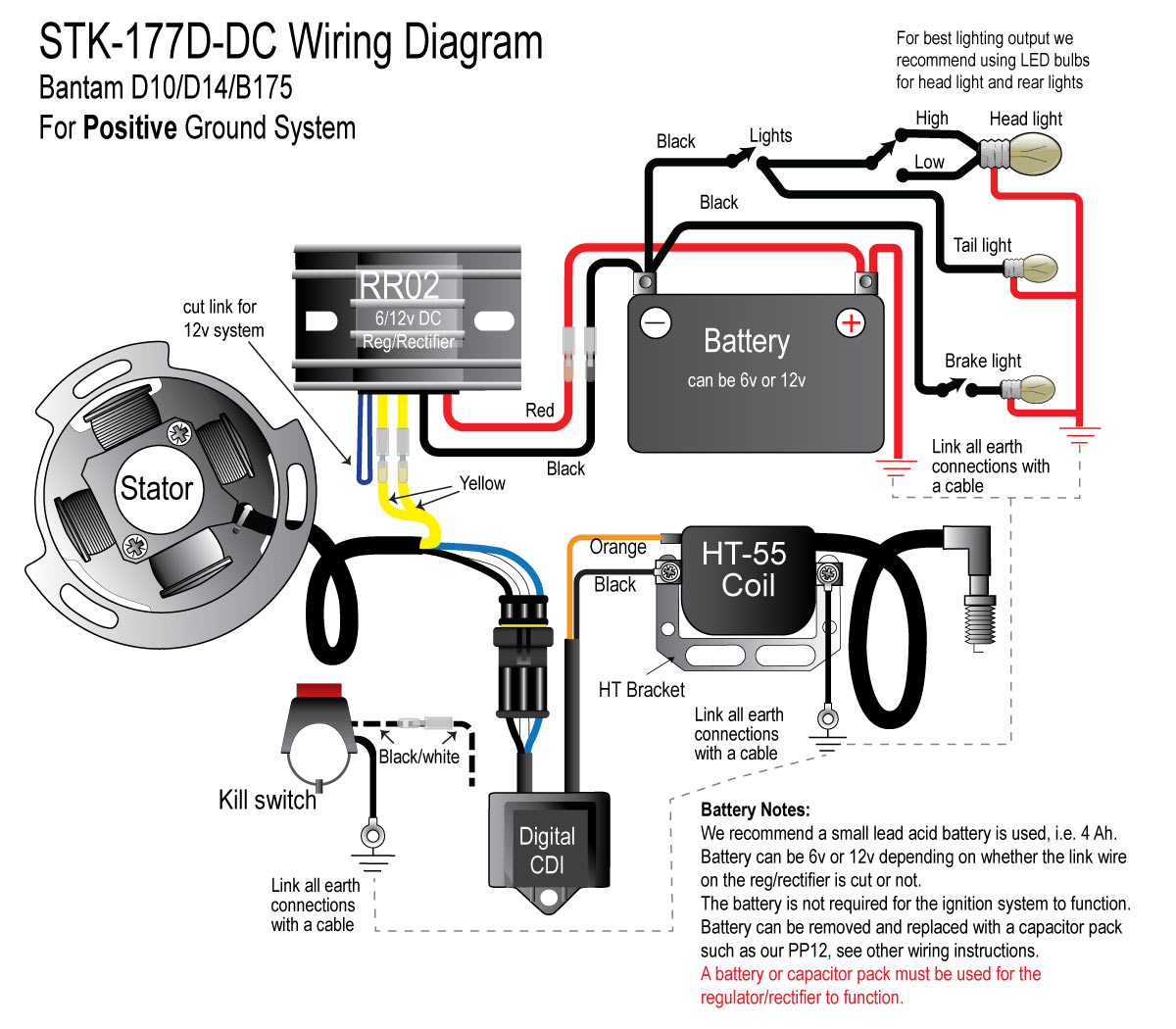

STK-177  - Self-generating CDI Ignition Kit with LightingSTK-177 - Stator in placeSTK-177 - Rotor in placeSTK-177 - Wiring diagram

STK-177 - Digital Ignition and Alternator System

Price:  195.00 / 220.35
(234.00 / 264.42 Including VAT at 20%)

Quantity:






       Fitting InstructionsDelivery & OverseasWarranty & Returns
  • Replacement for original alternator and ignition. Complete digital self generating ignition and alternator, pre-programmed advance curve gives optimum performance for the 4 stroke twin engine.
  • No battery, contact breaker assembly or distributor required for the ignition.
  • Simple timing set-up align marks on the rotor and stator.
  • Single phase alternator 65w output with combined regulator and regulator/rectifier. This gives a controlled 12v AC output to the lighting circuit to prevent bulb failure + 12v DC output to a battery if fitted. The battery can be replaced with a capacitor pack if required, this gives greater reliability but has limited energy storage capability.
  • NOTE: A battery is NOT required to run the ignition or lighting but advantageous for brakelight or indicators.
  • Most of our parts are manufactured by ourselves in the UK.




Related products:


FP-10 PullerFP-10 Puller
