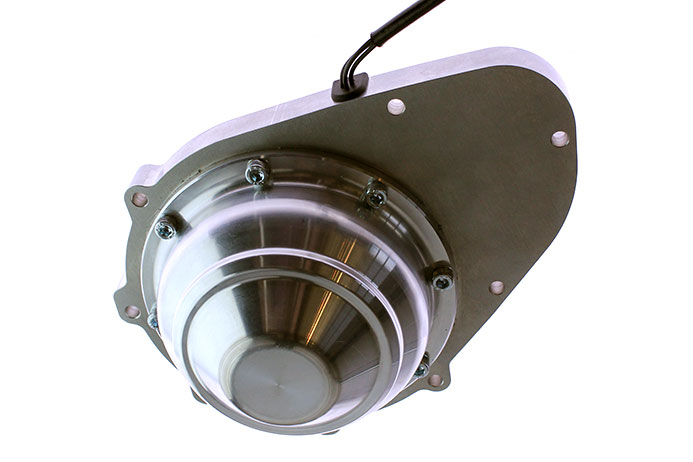

Kawasaki Z1000J, Z1000R, GPZ1100, Z1100R Road Race Alternator System - (RPKS-3112)


Kawasaki Z1000J, Z1000R, GPZ1100, Z1100R Road Race Alternator System - (RPKS-3112)

Price (excl. vat): 595.00 / 678.30
(714.00 / 813.96 Including VAT at 20%)

Road Race Alternator System Fits:

Kawasaki:Z1000J, Z1000R, GPZ1100, Z1100R

NOTE: This kit is designed to work with the original starter motor.


  • All components specifically designed and manufactured for Race Machines.
  • Horse power gains of 3-5hp can be expected compared to original generator set-up.
  • The 3 phase system produces more power for a smaller size, stator is only 9mm thick but output is greater than 25amps, more than adequate for modern fuel injected race bikes +extras. Note: All factory race kits are single phase, max power about 15amps.
  • Rotor is solid machined from alloy steel, typically weighing only 225gms, therefore with such a low rotational inertia throttle response is greatly improved.
  • Tested up to 20,000rpm so absolute reliability is assured.
  • Total system weight also saves between 2-4kg.
  • Power output 25amps, Dimensions OD 92mm, thickness 9mm (plus windings).

In common with other suppliers we are unable to offer warranty for electrical components used for racing.

Click the following link to download fitting instructions:
Download Instructions

Warranty

  • Road bike components - one year from the date of purchase
  • Off-road bike components - six months from the date of purchase
  • Race bike components - no warranty in line with industry practice
  • Any warranty does not cover defects due to abuse, misuse, improper installation or modification.

Transit

If any items were damaged in transit, we ask that you report it to us within 7 working days. On their return they can be replaced or a refund issued via your original payment method.

Faulty on arrival

If your items are faulty on arrival, you should inform us within 14 days of delivery. Items should be returned in their original packaging when possible with a copy of original documentation. Once we have verified the fault, we will issue a replacement or full refund to you via your original payment method.

Items faulty in warranty period

If any of your purchases develop a fault within its warranty period it will need to be returned. Once the fault has been verified, a repair or exchange of goods will be issued. If goods are found to be in good working order a testing/administration charge of 15 + VAT and return postage will be made to the customer.

Items ordered in error

If an item has been ordered in error, you should inform us within 14 days of delivery. We will not accept returned goods without prior consent except under guarantee. A minimum restocking/administration charge of 5 + VAT will be made on returned goods.

Returns We want you to be happy with your purchase from Electrex World Limited however there may be certain instances when products may need to be returned.

International Returns

International returns must be marked as 'Return - Failed Sale on any customs documentation. If there are any customs fees to pay, we will deduct these from your refund/credit.

Notes

  1. All returns must be accompanied by a copy of the original invoice and a completed returns form which can be downloaded using the following link:
    RETURNS FORM
  2. Returns take approximately five business days to process upon receipt of the item.
  3. We are not responsible for the loss or damage of items during their return. Please note that the customer has a duty of care whilst the goods are in their possession and that they should be thoughtfully packaged for the return shipment.
  4. Buyer is responsible for any shipping charges when returning the item.
  5. When fitting electrical parts these can be damaged by the same faulty electrical system that caused the initial failure and in such circumstances these parts cannot be returned for refund.
  6. No refund can be given If the item is out of warranty, if the item is within warranty but has been subjected to conditions beyond their specification or the item has been fitted/used.

Return Address

Electrex World Limited Units 43-46 Vanalloys Business Park Stoke Row Oxfordshire RG9 5QW

2006-2016 Electrex World Ltd. All rights reserved. Home | Terms & Conditions

Registered in England & Wales Company Registration number 04306310. VAT number 785 299 174.

Red - Battery +12v | Green - Battery -12v and earth | Blue - Pick-up | Yellow - HT-coil
